User Manual

This product uses Wi-Fi + Bluetooth + 2.4G wireless transmission technology, low power consumption, and strong anti-interference ability. Wi-Fi + Bluetooth connect network can greatly enhance the connect network experience. When the router is disconnected, Bluetooth can also directly connect and control equipment at close range. After successful network configuration using [Tuya Smart] app to achieve wireless dimming, remote control, group control, scene control, timing control, music movement, biorhythm, sleep plan, wake plan, one key execution, automation, etc. functions. And it supports a 2.4G remote control.

Features:

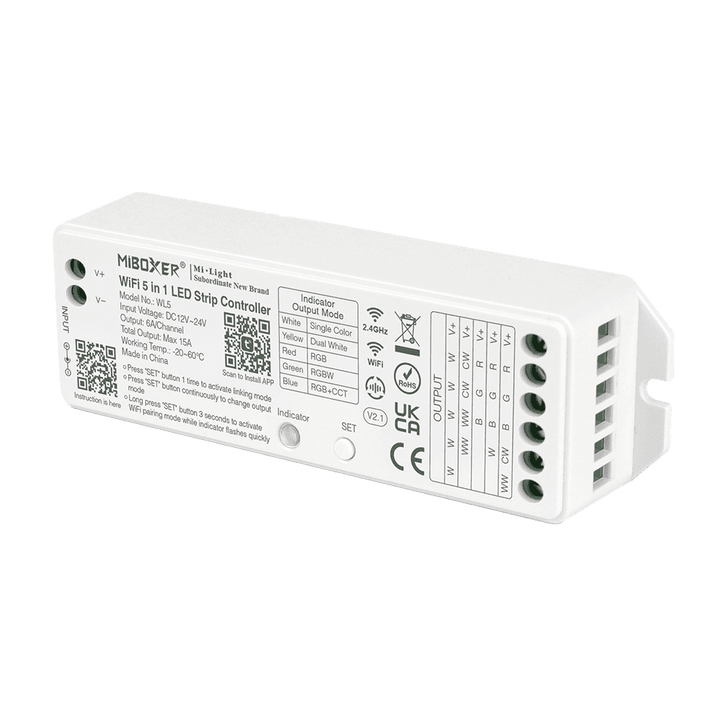

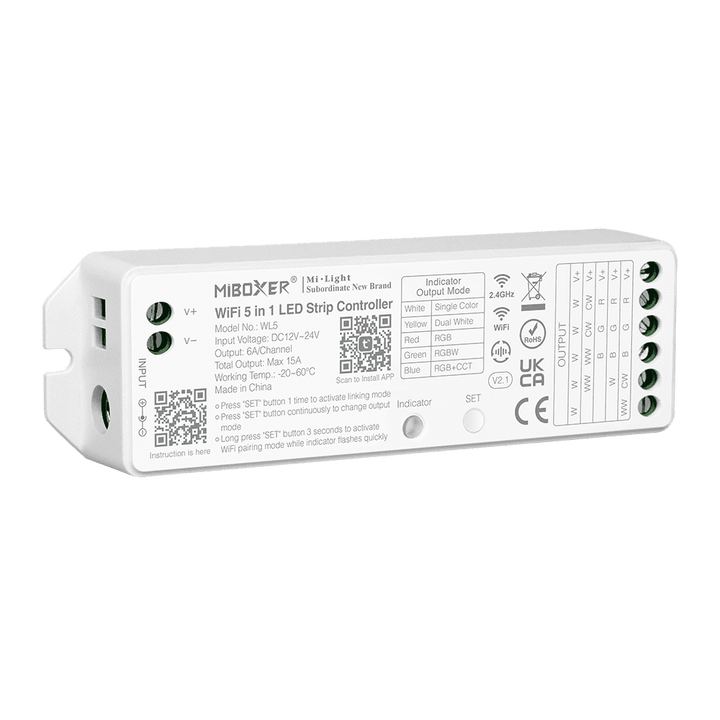

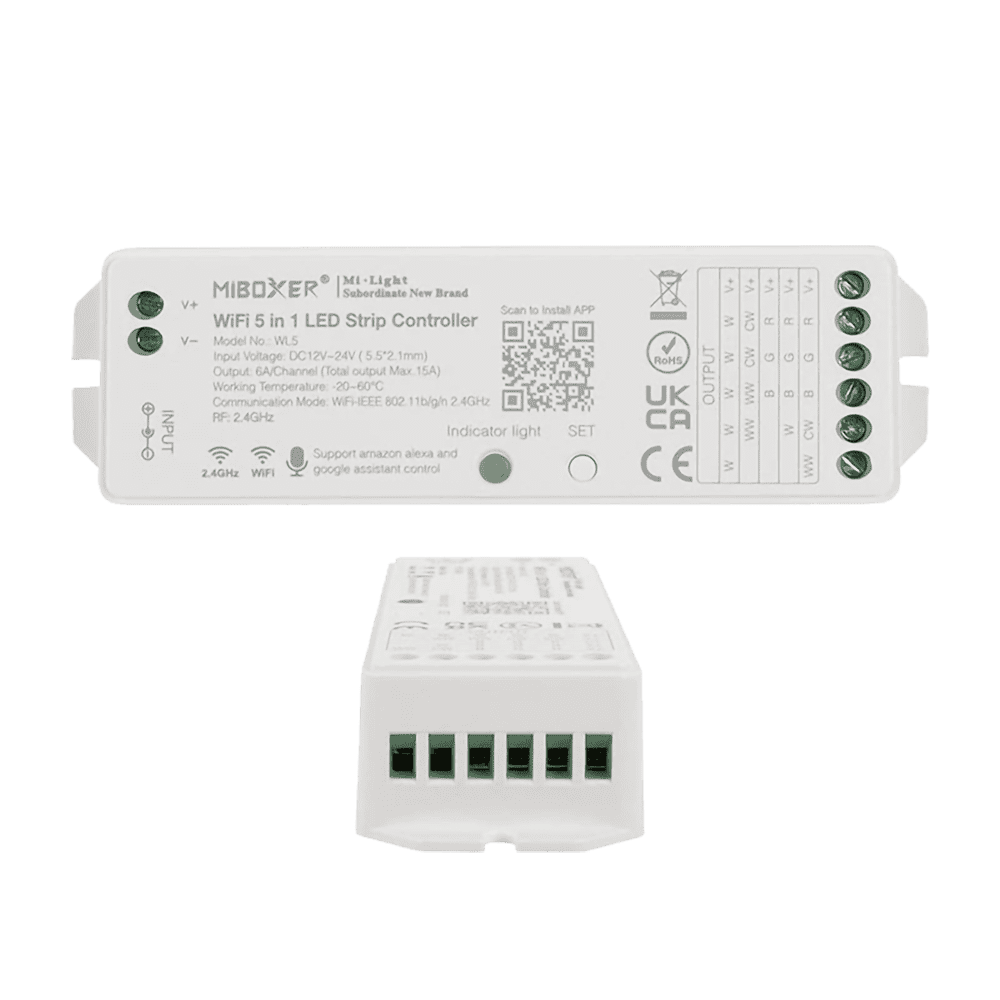

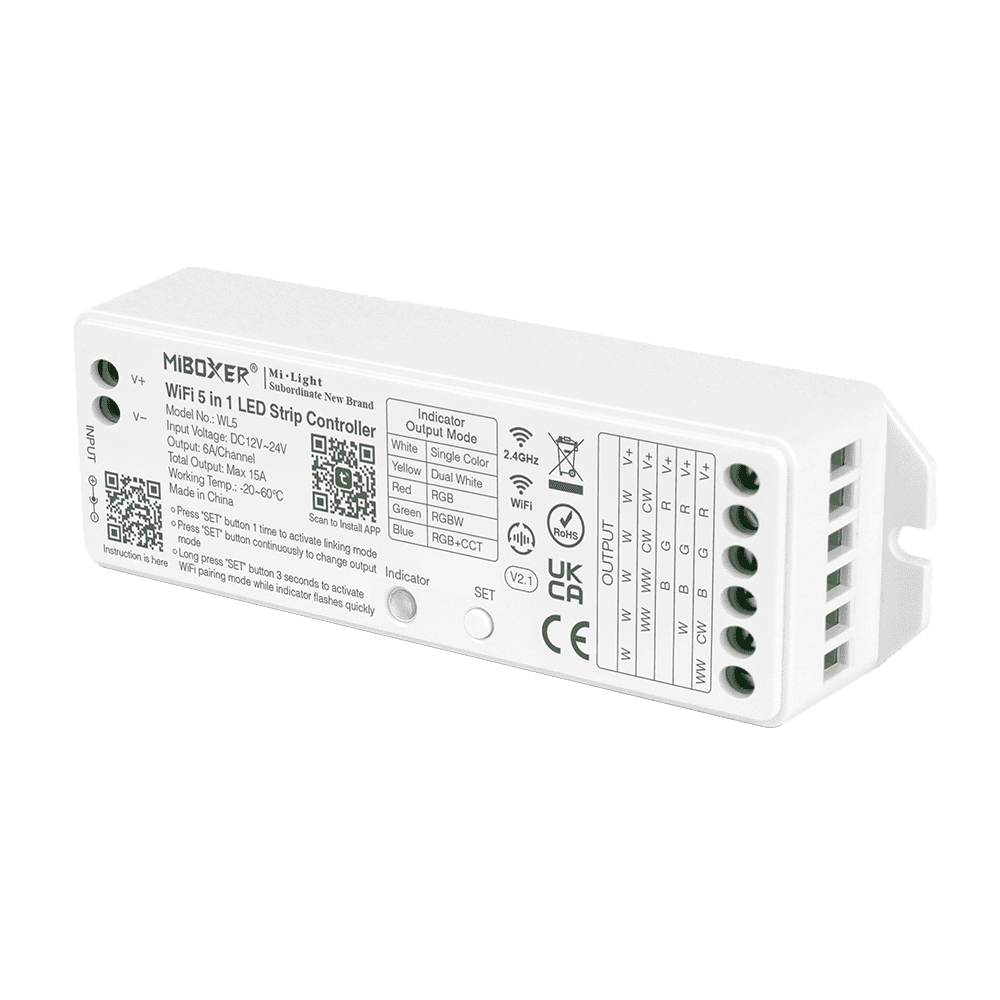

• Model: WL5

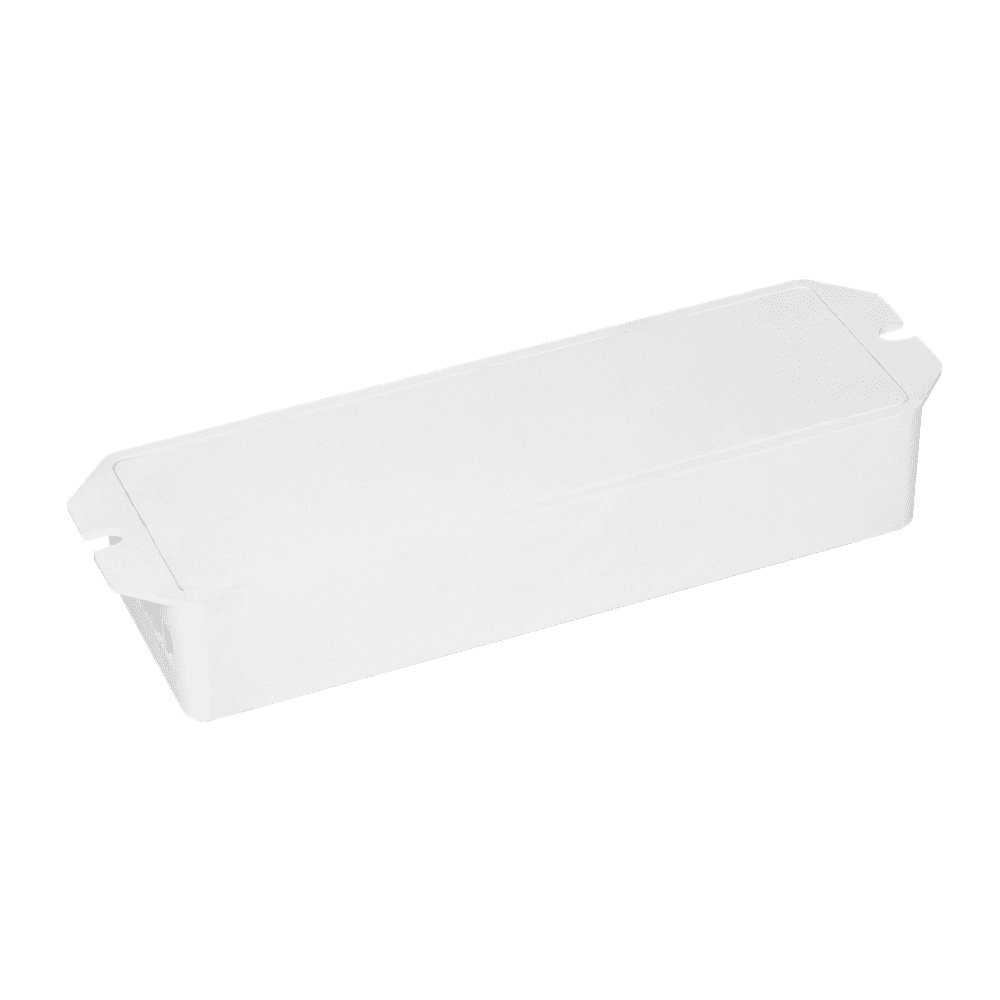

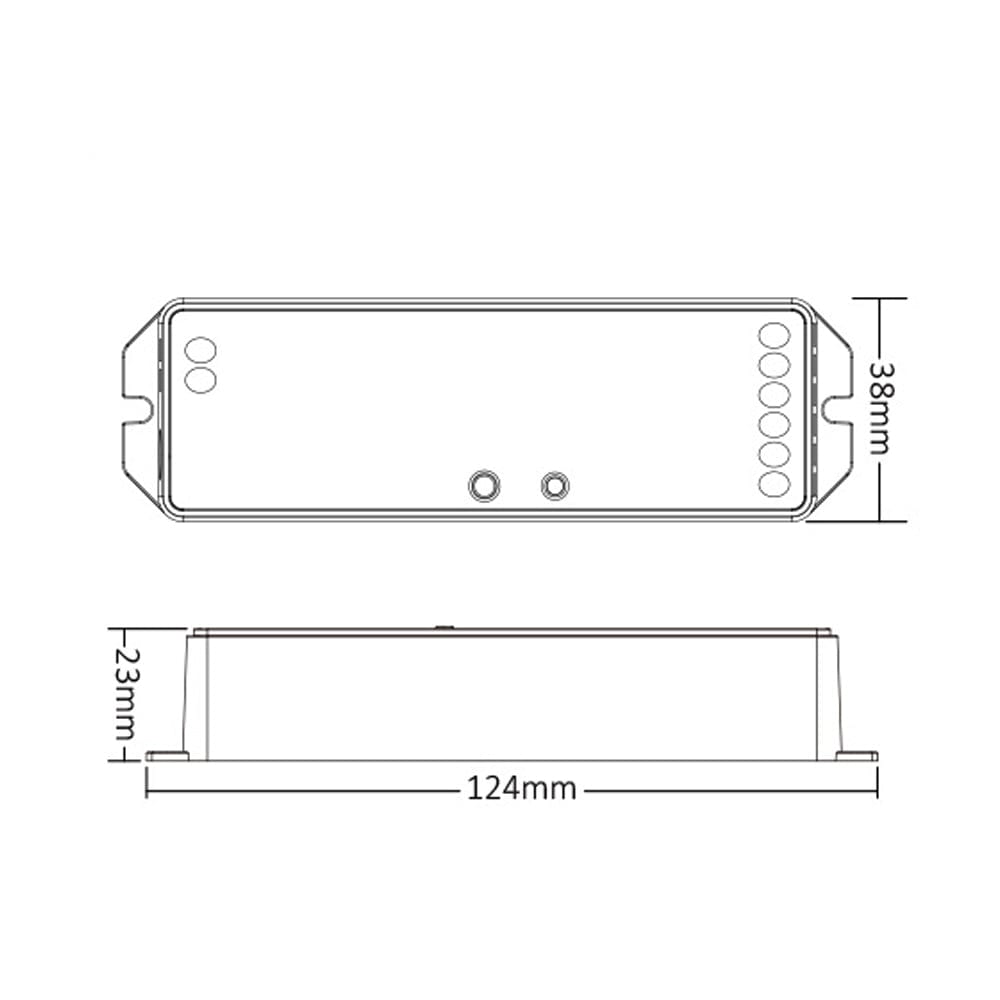

• Size: 124*38*23mm(L*W*H)
• Working Voltage: DC12-24V
• Output: Max 15A, Max 6A/Channel, 5 Output Channels
• Communication Mode: Wi-Fi-IEEE 802.11b/g/n 2.4GHz
• RF: 2.4GHz
• Working Temperature: -20℃-+60℃
• Supports Third-Party Voice Control
• Smart Phone APP Control
• Works With Amazon Alexa, Google Assistant

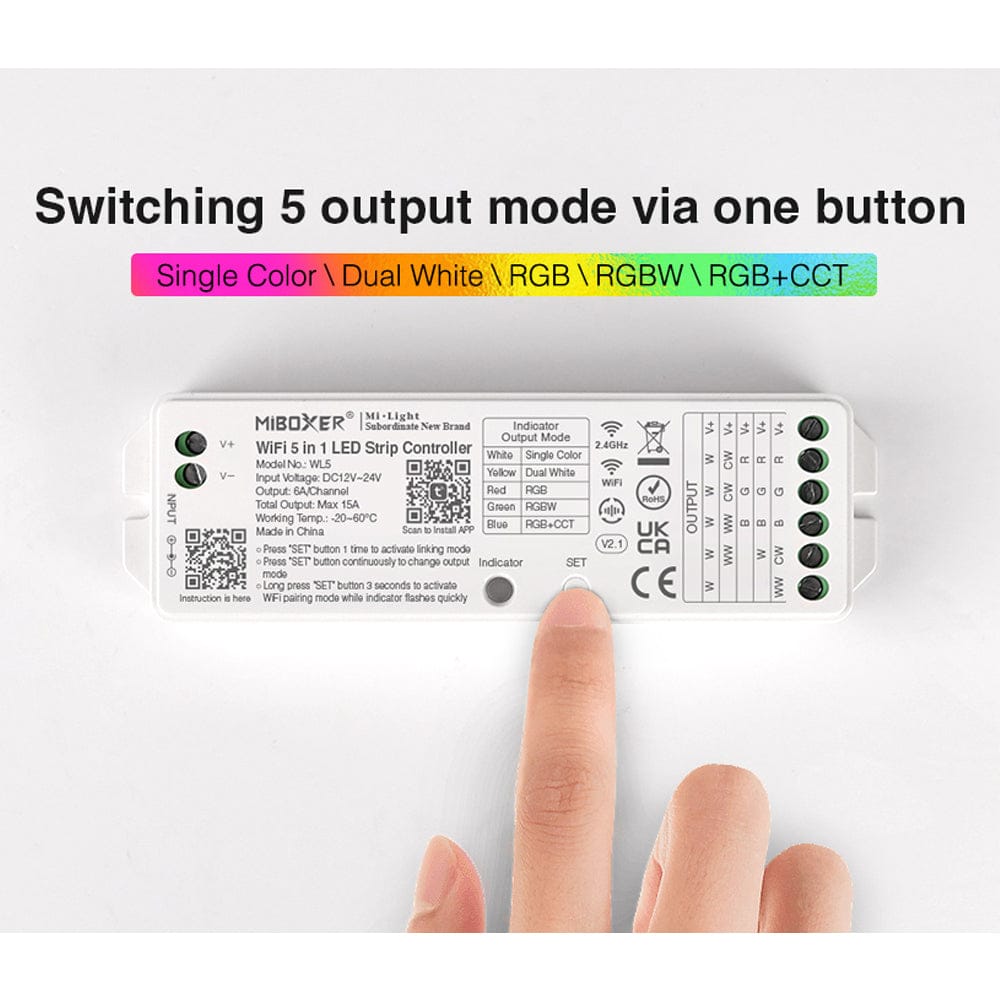

• Compatible With Single Color LED Strips, CCT Strip Lights, RGB Strips, RGBW Strips, RGB+CCT LED Strips
• Compatible With FUT089/FUT088/FUT092/FUT095/FUT096/FUT006/FUT007/B8/B4/T4/B3/T3/B2/T2/B1/T1/B0 2.4GHz Remote Control
• Group Setting and Group Control
• Timer Function
• Smartphone 4G Control at Any Time and Any Place
• Auto-Transmitting Function
• Auto-Synchronization Function
• 6 Channel 5 Circuits LED Strip Connector

Attention

1. Please turn off the power supply before installation.
2. Please ensure input voltage to be same as requirements from device.
3. Don’t disassemble the device if you are not an expert, otherwise it will damage it.
4. Please do not use the light in the place with wide range metal area or strong electromagnetic wave nearby, otherwise, the remote distance will be seriously affected.
